Sony STR-ZA3000ES Specs

Earlier this week, we reported on the Sony STR-ZA3000ES, the newest flagship receiver with 4k input/output, 7.2 surround sound and a 8-gigabit ethernet hub for good measure. Available later this month for $1,699, the STR-ZA3000ES offers almost everything you’d ever want from a receiver, minus a built-in Starbucks and AirPlay. (Come on Sony! Your lower end receivers used to have that last one). Wondering what else you can expect from the ES receiver? After the jump, we have the full Sony STR-ZA3000ES specs.

Product Specifications

Amplifier/Receiver Amplifier Features

Sub Woofer X’ Over : 17 points (40-200Hz)
Number of Amp channels : 7 channels
Bi-AMP : Yes
Speaker Impedance : 6 – 16 Ohms
Sound Optimizer : Yes
Digital Legato Linear : Yes
Speaker Terminal : Screw (Ni)
Speaker Selector : A/B, A+B, Off
Amplifier/Receiver Amplifier Power
- 8Ohms 1kHz : 110W, THD 0.9%
Amplifier/Receiver CIS & Control Features
- 2nd A : Speaker & Line (Variable & Variable)
Amplifier/Receiver DCAC Features
- Automatic Phase Matching : Yes
- Mic : Mono
- DCAC : Advanced D.C.A.C
Amplifier/Receiver Network Features
- Network Update : Yes
- CIS IP Control : Yes
Audio Features
- Audio Features Decoding Format
  - Dolby Digital EX/ Dolby Digital : Yes / Yes
  - 192kHz/24bit : LPCM, Yes
  - Dolby TruHD/Dolby Digital + : Yes / Yes
  - 96kHz/24bit : LPCM, Yes
  - DTS HD MA/ DTS HD HR : Yes / Yes
  - Dolby Prologic/II /IIx /IIz : Yes / Yes / Yes / No
  - DTS 96/24/ DTS Neo:6 : Yes / No
  - DTS / DTS-ES (Matrix6.1 / Discrete6.1) : Yes / Yes
- Audio Features Sound Field
  - PLII Movie : Yes
  - PLIIx Movie : Yes
  - Multi Stereo : Yes
  - Neo:6 Cinema : Yes
  - A.F.D. Auto : Yes
  - HD-D.C.S. : Yes
  - Analog Direct : Yes
  - 2ch : Yes
- Audio Features Tuner
  - Preset Channel (FM/AM) : 60 Total (30 FM, 30 AM)
  - Station Name : Yes
  - Direct Tuning : Yes
  - Auto Tuning : Yes
General
- General Installation
  - 2nd V : HDMI / Component / Composite
  - 12V Trigger : 3
  - Certification (AMX/Crestron/Control 4) : Yes / Yes / Yes
  - 3rd A : Line (Variable / Fixed)
  - RS-232C for Control : Yes
  - IR Repeat (In/Out) : Yes (1 in / 2 out)
- General Other
  - Power Requirement : 120 V, 60 Hz
  - Power Consumption : 290 W
  - Pin Jack : Nickel
  - Update Capability : Yes, via USB
  - Sleep Timer : Yes (up to 2 hours)
  - Auto Standby : Yes
  - Assignable HDMI Video In : Yes
  - Easy Automation : Yes with Custom Preset
  - Assignable Component Video In : Yes
  - Digital Input Assign : Yes, Optical and Coaxial
  - Detachable AC : Yes
  - GUI Blending Output (from Composite/Component/HDMI)(2) : Yes
  - GUI Language : English, French, Spanish
  - GUI : Yes with Easy Setup Wizard

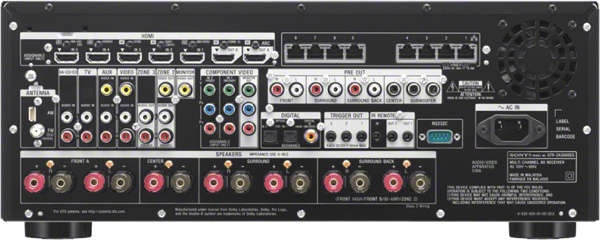

Inputs and Outputs
- Inputs and Outputs Audio Inputs
  - Analog Audio In : 4
  - Coaxial : 1
  - Optical In : 2
- Inputs and Outputs Audio Outputs
  - Pre Out (Front (L/R)) : Yes
  - Pre Out (Center) : Yes
  - Pre Out (Subwoofer) : Yes
  - Pre Out (Surround Back (L/R)) : Yes
  - Pre Out (Surround (L/R)) : Yes
- Inputs and Outputs Other Inputs and
  - USB : 1 (front, for setting Save / Load)
  - Ethernet (Switching HUB) : 8-port Giga Ethernet Hub (with PoE support (2x))
- Inputs and Outputs Speaker Outputs
  - Center (Bass/Treble) : Yes
  - Front (Bass/Treble) : Yes
  - Front High (Bass/Treble) : Yes
  - Center Speaker Lift Up : Yes
  - Surround Back (Bass/Treble) : Yes
  - Surround (Bass/Treble) : Yes
- Inputs and Outputs Video Inputs
  - Component Video In : 2 (assignable)
  - HDMI In : 6 (1 front) (2 with HDCP 2.2 support)
  - Component Video Out : 1
- Inputs and Outputs Video Outputs
  - Composite Video Out: Inc. Monitor Out : 2
  - HDMI Out : 2 (with HDCP 2.2 support)
Video Features
- Video Features A/V Sync Features
  - A/V Sync Sampling Frequency : 192 kHz
  - A/V Sync Time (msec) : 0-300 msec
  - A/V SYNC : Yes (Variable)
- - HDMI™ video output capability : 4K, 1080p, 1080/24p Deep Color (up to 36 bit), TRILUMINOSTM Color (xvYCC)
  - Video Up Converter (Analog Component/HDMI) : Yes (Analog to HDMI)
  - Video Up Scaler (Analog; Component/HDMI) : Yes (4K)
  - Power Off Pass Through : Yes
  - 3D over HDMI : Yes
  - DSD : Yes (HDMI)
  - BRAVIA® SYNC™ (CEC Control) : Yes (One Touch Play, System Audio Control, System Power Off)
  - S-Select : Yes
  - Audio Return Channel : Yes
- Weight and Measurements Weight and Measurements
  - Receiver Weight (pound) : 13.4 kg
  - Receiver Dimension (WxHxD inches) : 430 x 174 x 410 mm
